0004440: Abrams have impenetrable driver capsule and frontal turret (and turret plates)

Notes

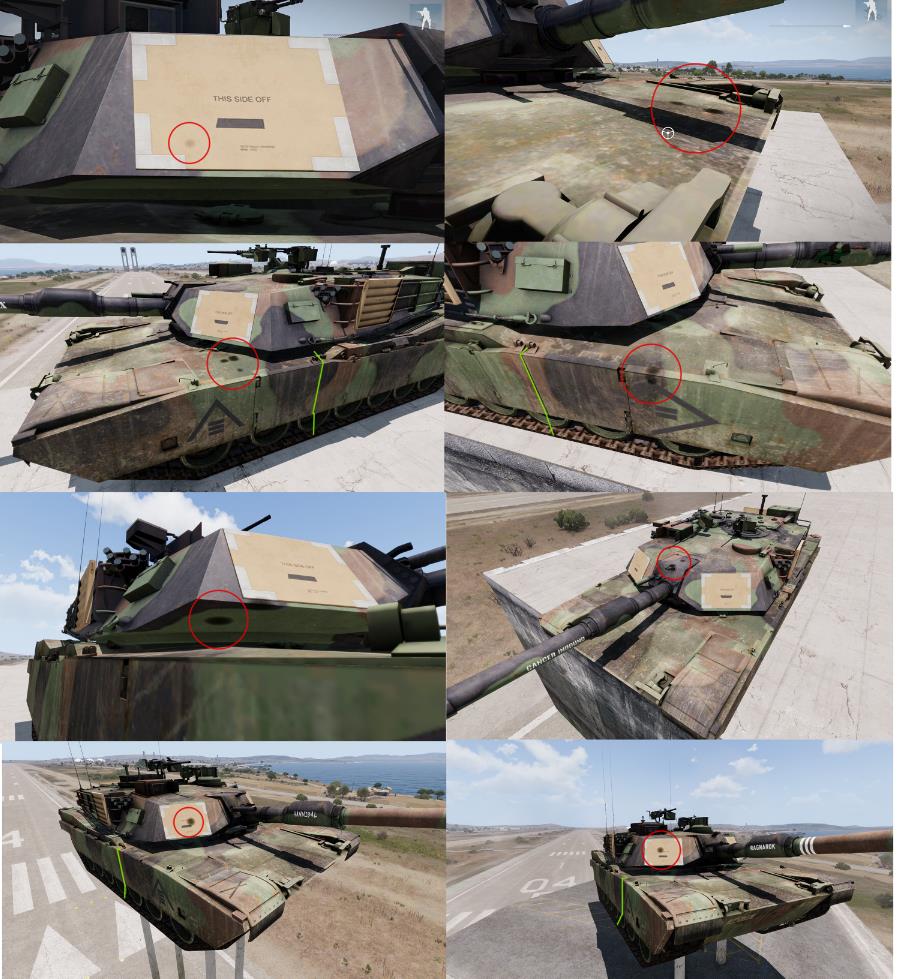

(0008249) 7ftnick (reporter) 2018-08-20 12:11	Posted 3 times for some reason

(0008251) reyhard (administrator) 2018-08-20 12:20	http://www.steelbeasts.com/sbwiki/images/1/14/M1A2_SEP_frontLOS.jpg [^] RHS M1A1SA & M1A2 doesn't have that CE weak spot on driver spot since that's not correctly modeled in SB but it should give you sense of much protection against HEATs that tank has. Furthermore, Kh29, unlike maverick, doesn't have HEAT charge and is using blunt explosive force. Let me know if you still find something weird in current behavior

(0008252) 7ftnick (reporter) 2018-08-20 12:39	It is the same with Mavericks, RPG, and all types of tank rounds. Damage only to the tracks.

(0008253) reyhard (administrator) 2018-08-20 12:46	https://www.quora.com/What-is-the-RHA-penetration-of-an-AGM-65-Maverick-missile [^] turret front sides are pretty much immune to almost everything. Upper center plate is for example penetrable with BM48 or Kornet if hit from correct angle. I've tried also gun mantlet which you marked and it was penetrated with Kornet & BM42M

(0008254) 7ftnick (reporter) 2018-08-20 12:51 edited on: 2018-08-20 12:52	And the side ? Driver capsule acts this way on the side before the green line approx. And right after 1 rpg round blows the whole tank up. The first modification without era.

(0008255) 7ftnick (reporter) 2018-08-20 13:07 edited on: 2018-08-20 13:08	If you look from the side, starting from the driver, there is a plate that covers the tracks. There is the first one bigger one, and then a smaller one behind it. A bit left of the center of this second plate there is an invisible line. If you hit to the right of that line, nothing will happen, no damage at all. If you hit a bit to the left - tank blows up. (Front of the tank should be on your right)

(0008256) reyhard (administrator) 2018-08-20 13:17	On the driver sides there are 2 large diesel fuel tanks which acts as a additional protection. It's rather hard to ignite that fuel tank but damaging it will result in fuel leak. Furthermore, there are small components which are responsible for steering so it's also possible to sort of "disable" tracks, without hitting actually tracks. It could be somehow improved indeed that this extra protection is disabled when there is no fuel but I would consider it as some nice to have thing in future. Right behind that green line there is also hull ammo storage which is sort of weak spot so any hit nearby have higher chance to cause catastrophic damage. There are also missing some internal components for FCS & optics so any hit that penetrates hull/turret side should be able to disable plenty of components inside but it's also something that might be introduced later.

(0008276) 7ftnick (reporter) 2018-08-21 10:20	The most powerful Russian SABOT in RHS is 3BM48. Its KE penetration is 300mm. So according to the picture above I should be able to get the whole red area on the side. THe picture below is what I actually get in arma, blue areas are not penetrable although they should be. https://imgur.com/a/wcL2rIt [^] Is this correct or no ?

(0008277) reyhard (administrator) 2018-08-21 10:26 edited on: 2018-08-21 10:27	Where did you get 300mm penetration? 3BM48 have around ~681mm at 2km. At point blank it's above 700mm (don't remember exact value). On that SB graph slopes are included. Are you sure that tank is not penetrated? It might just not cause any critical damage in those zones since there is mostly equipment or already mentioned before diesel fuel.

(0008307) Damian (reporter) 2018-08-21 19:19 edited on: 2018-08-21 19:29	Everything is ok. M1A1SA/M1A1FEP and M1A2SEPv1 uses 3rd generation Heavy Armor Package, it means that this think is more or less impenetrable from the front for anything, besides weak spots like gun mantlet, altough even with penetration internal damage can be minor. People I will repeat one more time, start using your brains and tactics and attack M1's from sides, rear or top (or bottom with mines and IED's), if you try to defeat M1 from the front, you are dead, simple as that. Heck you will have problems defeating front armor of Russian tanks like T-80U or T-90A as well. And before someone will say we are biased. In RHS M1A2SEPv1 heavy composite armor provides comparable protection to T-90A composite armor + ERA, the difference is: For turrets - 100mm in favor for M1 vs KE. For hulls - 50mm in favor for M1 vs KE. PS. And this is IMPORTANT! If you people have problems, completely delete RHS and download it again. I tested M1's and other vehicles several times, and everything works ok. It either means you have corrupt download, or you also have some mod that can cause problems.

(0008309) 7ftnick (reporter) 2018-08-22 01:32	Ye I restarted the game and it seems working, still testing though. Now most of the time it penetrates and kills the crew inside, but does not do any damage to the tank. But like reyhard said he will add some systems that will get dammaged but for what it is now it works ok. Befor arma never performed this way for me, but literally something happens, and it starts doing weird things like some vehicles act weird or AI becoms unresponsive. I noticed it yesterday. Game restart usually fixes the issues.

(0008328) Damian (reporter) 2018-08-22 22:16	If you have such issues, the best way is to reinstall entire game and then do fresh download and installation of the mods. I suspect corrupt downloads on your end.

(0008330) 7ftnick (reporter) 2018-08-23 06:49	I did reinstall seems better now. However the concer is about AI. As you know arma supports the following components: Engine, Turret, Gun, Hull, R Track, L track. And AI respond mostly to not alive or not canmove. Although round penetrates and kills everyone insde, none of the upper components gets any damage. This makes tank a valid target for enemy AI,they will keep engaging it untill out of ammo. AI driver will remail alive, because usually his compartment is not getting shot at. So maybe it is possible to implement some sort of workaround to make it not a valid target for other AI after crew is killed, or to make driver get out or something ?
