Summary0003384: Left And Right Hull Gunners Of BMP-3 must have more realistic FOV and Reticle of his optics
DescriptionУ правого и левого стрелка БМП-3 очень маленький угол обзора и нереалистичный прицел, что делает их почти бесполезными на дистанциях более 100 метров.

Прошу рассмотреть привидение их к реалистичному виду, по аналогии со второй армой(Видео прилагаю)
https://www.youtube.com/watch?v=vc2vVsx68D0 [^]
Steps To ReproduceСесть на стрелков в БМП-3
Additional InformationAside from the main armament and the co-axial machine gun, the BMP-3 also mounts two PKTM bow machine guns, each with 2000 rounds in a continuous belt. The machine guns are aimed through a single TNPZVE01-01 periscope-aiming device which has a collimator reticle projected on the viewing aperture through a fiber optic cable. The periscope itself thus becomes a gunsight, with a moving luminous reticle which moves as the PKT moves

https://2.bp.blogspot.com/-BW5aKe2pXjo/VRrD9zKV-2I/AAAAAAAABlI/VYqRvYpf-oM/s1600/tnpzve01-01.png [^]

https://thesovietarmourblog.blogspot.com/2014/10/ [^]
TagsNo tags attached.
Is it a wish/request?Yes
RHS versionStable
Arma 3 version1.82
Did you used any other mod when the error occurred?No
Which mods?
Attached Filesjpg file icon 20170702115108_1.jpg [^] (134,248 bytes) 2017-07-02 11:03


jpg file icon 027.jpg [^] (1,945,898 bytes) 2017-07-04 20:22
jpg file icon 026.jpg [^] (2,054,469 bytes) 2017-07-04 20:23
jpg file icon iiiiiii.jpg [^] (326,371 bytes) 2021-04-10 11:12

- Relationships

-  Notes
(0007201)
redux (reporter)
2017-12-08 13:11
edited on: 2021-04-10 11:16

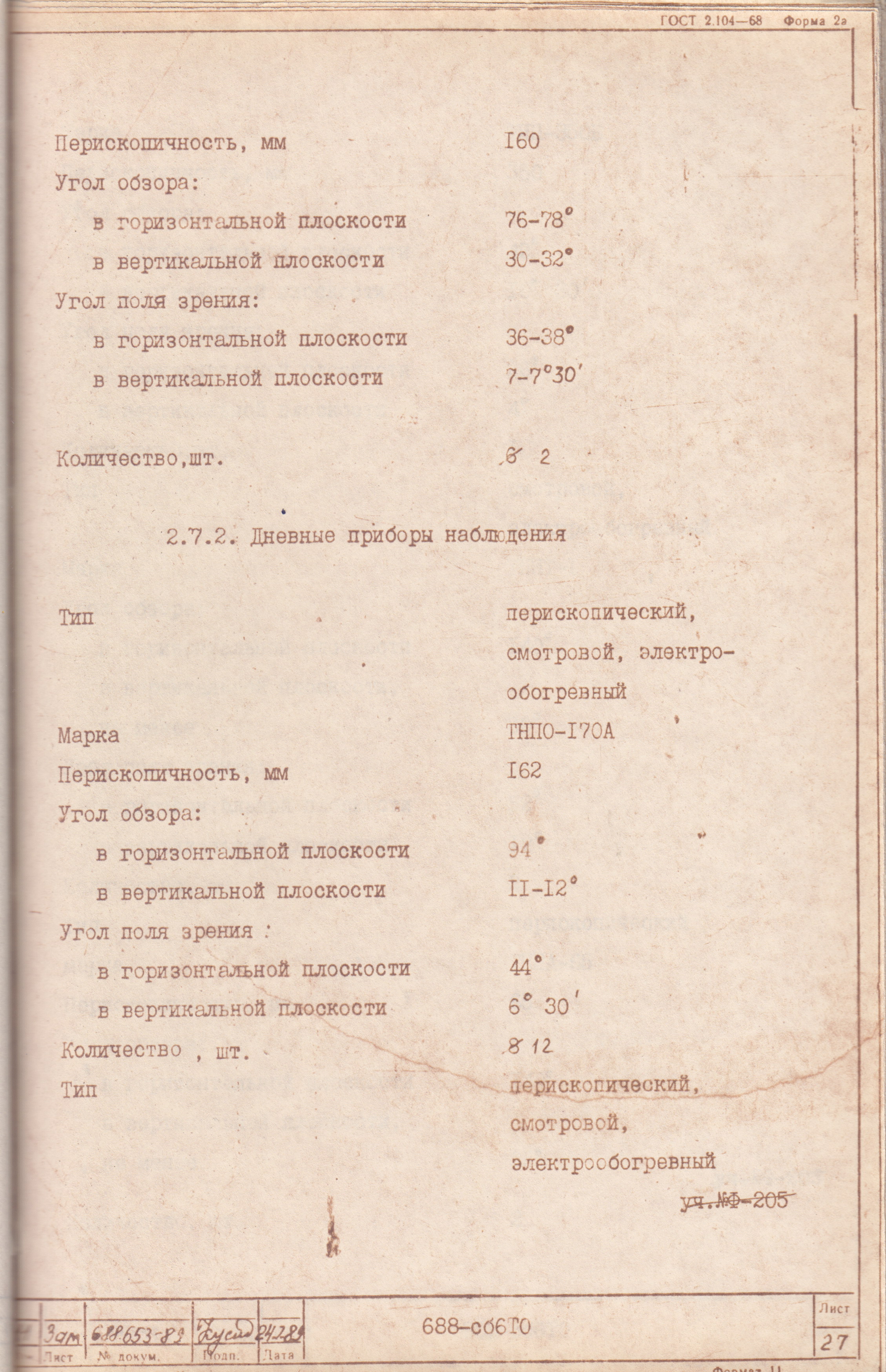

 Прибор называется ТНПЗВЭ01(01): его поле зрения можно найти на этой странице: http://lzos.com/perescop.htm [^]

https://cyberpedia.su/9xdf3d.html [^]

-угол поля зрения в вертикальной плоскости: 8 градусов;
-угол поля зрения в горизонтальной плоскости: 38 градусов;
-увеличение: 1х

Угол поля зрения в IRL у данного прицела может быть увеличен по вертикали до 32 градусов и по горизонтали до 78 град при движении глаз и головы, с помощью заглядывания за край изображения.

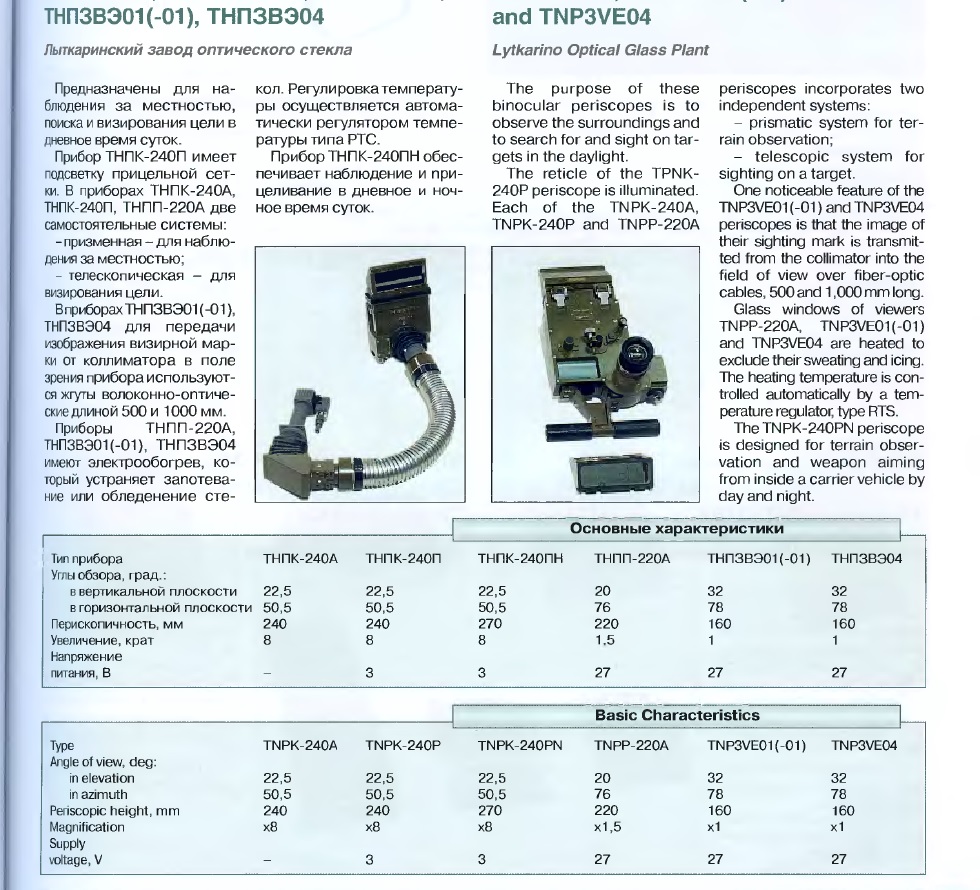

Там же картинка, на которой изображена у нижнего левого предмета прицельная сетка и сам прицел справа: http://lzos.com/perescop.htm [^]
